Description

APPLICATION:

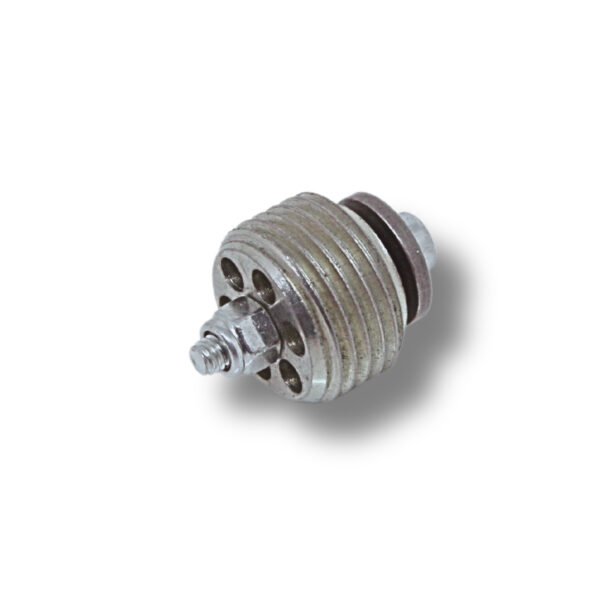

In case of pipe breakage, the hose burst valve blocks automatically a sudden increase in flow.

MOUNTING AND OPERATION:

Insert the valve into the appropriate cavity making sure that A is connected to the return line and B to the actuator.

Under normal working conditions the flow passes free from A to B and vice versa.

In the event of a sudden increase in the flow from B to A, the valve plate moves blocking completely the passage.

In the case of a plate with a calibrated hole, the flow after a first stop flows slowly.

To change the flow to be controlled, increase or decrease the opening thickness S.

UPON REQUEST:

Special setting – Calibrated hole – Special zinc-plating – Metric threads – Cartridge Male / Female – Cartridge Female / Female
